1. Summary
DP6020A and DP6040A probe is the low voltage differential probe with float ground testing function. The measurement voltage is ±20V(DC+Pk) and ±40V(DC+Pk), maximum bandwidth up to 800MHz, with 10:1 and 20:1 attenuation setting, can largely decrease the circuit load. With the overload alarm function, the DP6020A can adapt with any oscilloscope with 50Ω BNC input, and can be powered by the USB port on oscilloscope or other computers. Widely used in many applications, DP6020A can provide excellent general differential signal testing for high speed power measurement, vehicle bus testing and digital system design.
Electronics Specification
型號 | DP6020A | |

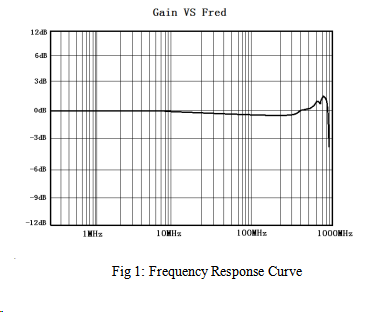

Bandwidth(-3dB) | 800MHz(see Fig 1) | |
Rise time | ≤437ps | |
Accuracy | ±2% | |
Attenuation ratio | 10:1 | |
(DC + Peak AC) Maximum differential voltage | ±20V | |
Common mode voltage | ±30V | |
Maximum rated input voltage (to earth) | ±40V | |
Input impedance | Single to earth | 100kΩ |
Double input | 200kΩ | |
Input capacitance | Single to earth | ＜2pF |
Double input | ＜1pF | |
Output voltage fluctuation | ±2V(50Ω Oscilloscope Input) | |
Offset (Typical value) | ±5mV | |
Offset adjust range (Typical value) | ±20mV | |
CMRR | 50Hz/60Hz | ＞80dB |
500MHz | ＞15dB | |
Noise(Vrms) | ＜4.5mV | |
Overload indicator voltage threshold | ≥20V | |
Delay time | Probe main | 6ns |
BNC(1m) | 5ns | |
Overload indicator | Indicator will be lighted red when overload occurs | |
Terminal load requirement | 50Ω | |
Power supply | USB 5V/2A Adaptor | |
