The minimum current measurement 5mA
Noise ≤500uArms
The maximum insulation line voltage 600V CATII
Summary

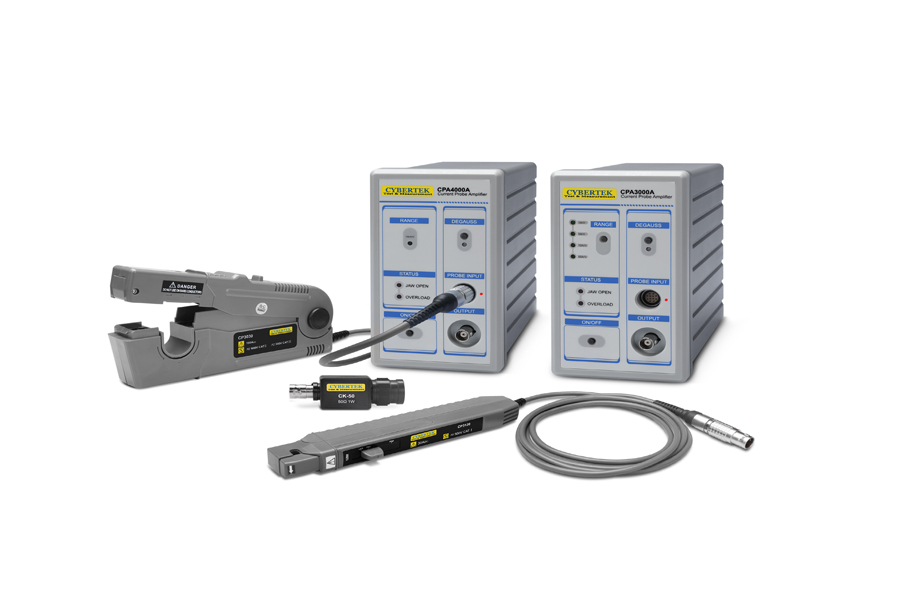

CPA3000 and CPA4000 is high performance Current Probe Amplifiers for the CP3000/CP4000 AC/DC current probes .The current probes covered in this manual are listed
Parameters | Model | |||
CP3030 | ||||
Range | 5A/V 50A/V | |||
Minimum measured current | 5mA | |||
Noise (Bandwidth limitation 20MHz) | ≤500uArms | |||
Maximum current (Decreases as frequency increases Figure 14~17) | Range | 50A/V | 5A/V | |
DC continuous | 150A | 25A | ||
RMS (Positive wave) | 150A | 17.7A | ||
Peak value | 500A | 500A | ||
Terminal load requirement | 50Ω | |||
Delay | Current system | 25ns | ||
BNC line 1m | 5ns | |||
Maximum insulation wire voltage | 600V CATII 300V CATIII | |||

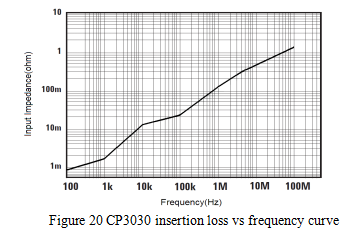

Insertion impedance | Refer to Figure 20 | |||
