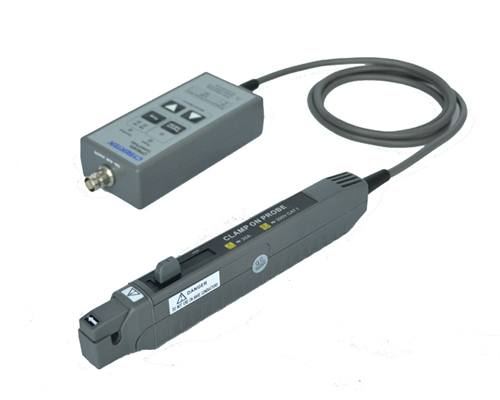

| Model | CP8050A | ||
|

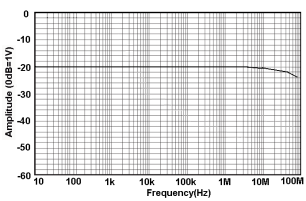

Bandwidth (-3dB) |
DC-50MHz (Figure 4) |
||
| Rise time | ≤7ns | ||
|
Continuous maximum input range |
50Arms (Figure 5) |
||
|
Max peak current value |
75Apk | ||
| Range | 7.5A | 1X | |
| 50A | 10X | ||
| Overload | 7.5A | ≥7.5A | |
| 50A | ≥75A | ||
|
Current transfer ratio |
7.5A | 1V/A | |
| 50A | 0.1V/A | ||
|
measurable current |
7.5A | 1mA | |
| 50A | 10mA | ||
|
Amplitude accuracy (DC,45-66Hz ) |
7.5A | ±1%±1mA | |
| 50A | ±1%±10mA | ||
|

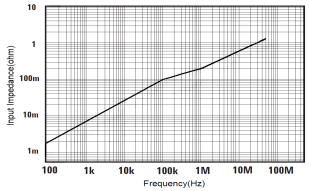

Input impedance |
Reference(Figure6) | ||
|
Delay time |
Probe | 14ns | |
|
BNC (1m) |
5ns | ||
| Terminal load | ≥100kΩ | ||
| Power supply | DC 12V/1A（Standard Adaptor） | ||
| Voltage of insulated wire | 300V CATI | ||
| Safety compliance | EN61010-1: 2010 | ||
| EMC standard | EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013 | ||
