Summary

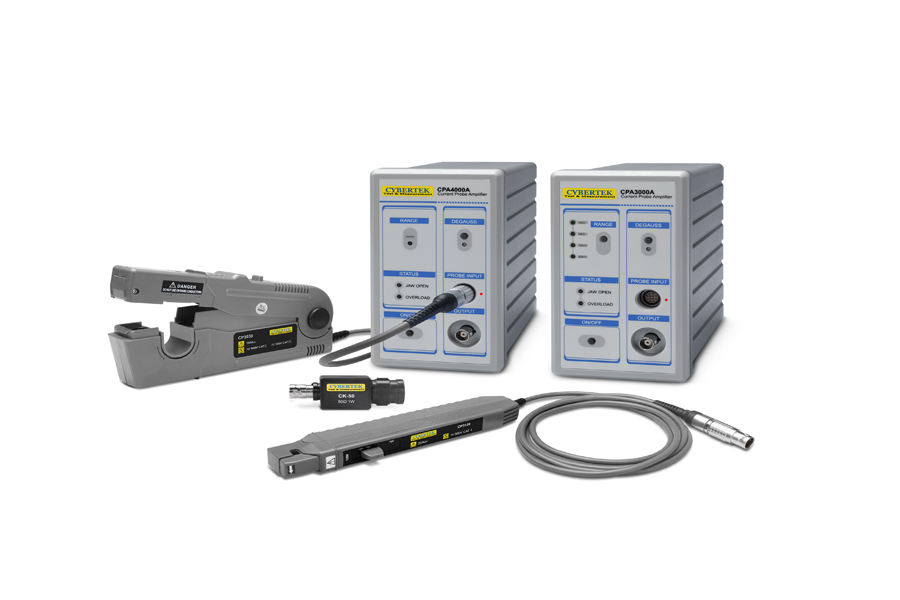

CPA3000 and CPA4000 is high performance Current Probe Amplifiers for the CP3000/CP4000 AC/DC current probes .The current probes covered in this manual are listed
Parameters | Model | |||
CP3050 | ||||
Range | 5A/V 10A/V | |||
Minimum measured current | 5mA | |||
Noise (Bandwidth limitation 20MHz) | ≤500uArms | |||
Maximum current (Decreases as frequency increases Figure 14~17) | Range | 10A/V | 5A/V | |
DC continuous | 50A | 25A | ||
RMS (Positive wave) | 35A | 17.7A | ||
Peak value | 50A | 50A | ||
Terminal load requirement | 50Ω | |||
Delay | Current system | 15ns | ||
BNC line 1m | 5ns | |||
Maximum insulation wire voltage | 300V CAT I | |||

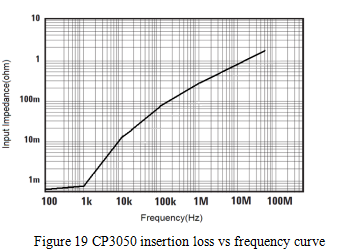

Insertion impedance | Refer to Figure19 | |||
