1. Summary
EM5013 is a type of LC passive 150kHz high pass filter, mainly used to filtrate the interference signal below 150kHz with strong attenuation in stopband. In the EMI testing requiring filtration of interference signal below 150kHz, 150kHz high pass filter can be apply to the front of the receiver to avoid measuring error caused by the non-linear distortion of interference signal below 150kHz.
1、 Electronics Specification
|
Bandwidth |
150kHz～300MHz |
|
Swing in channel |
±3dB |
|
Impedance |
50Ω |
|
Port |
Input |
BNC (Female) |
|
Output |
BNC (Male) |
|
Attenuation in stopband |
>30dB @ ≤100kHz |
|
Frequency response curve |
Fig 1 (indoor temperature) |
|
Operating temperature |
0℃～55℃ |
|
Storage temperature |
-40℃～80℃ |
|
Dimension |
132*37*20mm |
|
Weight |
290g |

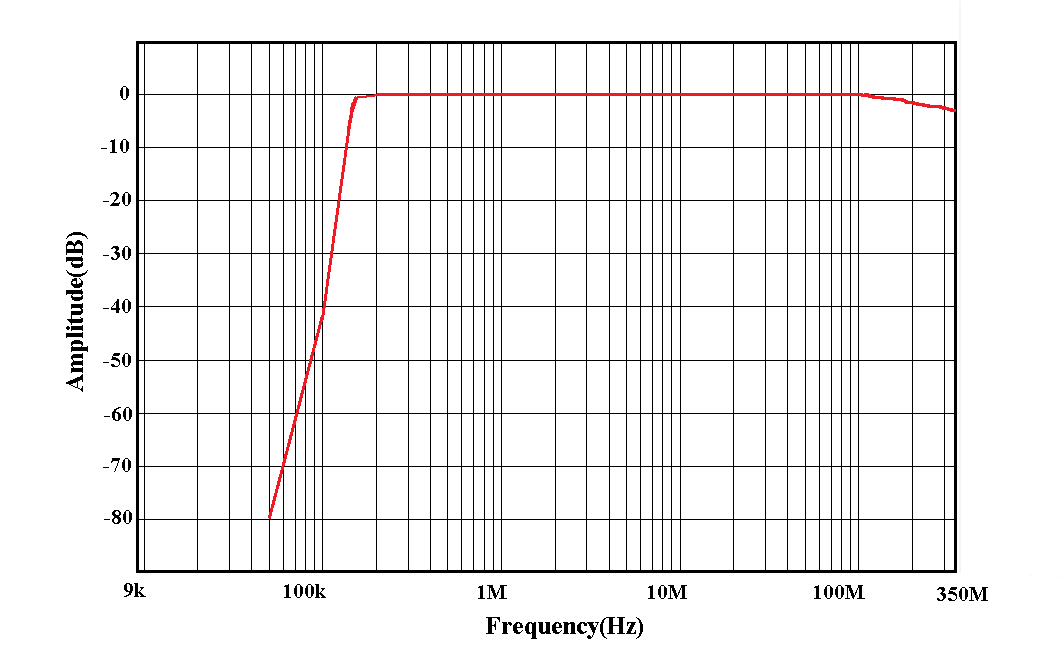

Fig 1 Frequency Response Curve
